Optical Refractometer
Description
This test kit provides the necessary equipment for determining the volume percent (%v.) of anti-icing additive, known as AIA, FSII, PRIST®, or DiEGME in turbine engine fuels.
We now have a new visual optical refractometer, a high quality device made by a Japanese optics company at a lower cost than previous direct reading refractometers!
Requires only:
- 200mL sample of fuel to be tested
- An ounce of potable water
- One man’s time for 12 minutes
NOTE: The graduated scale is labeled DiEGME and it reads the true volume percent directly. No correction or mathematics needed.
| Model No. | Description |
|---|---|

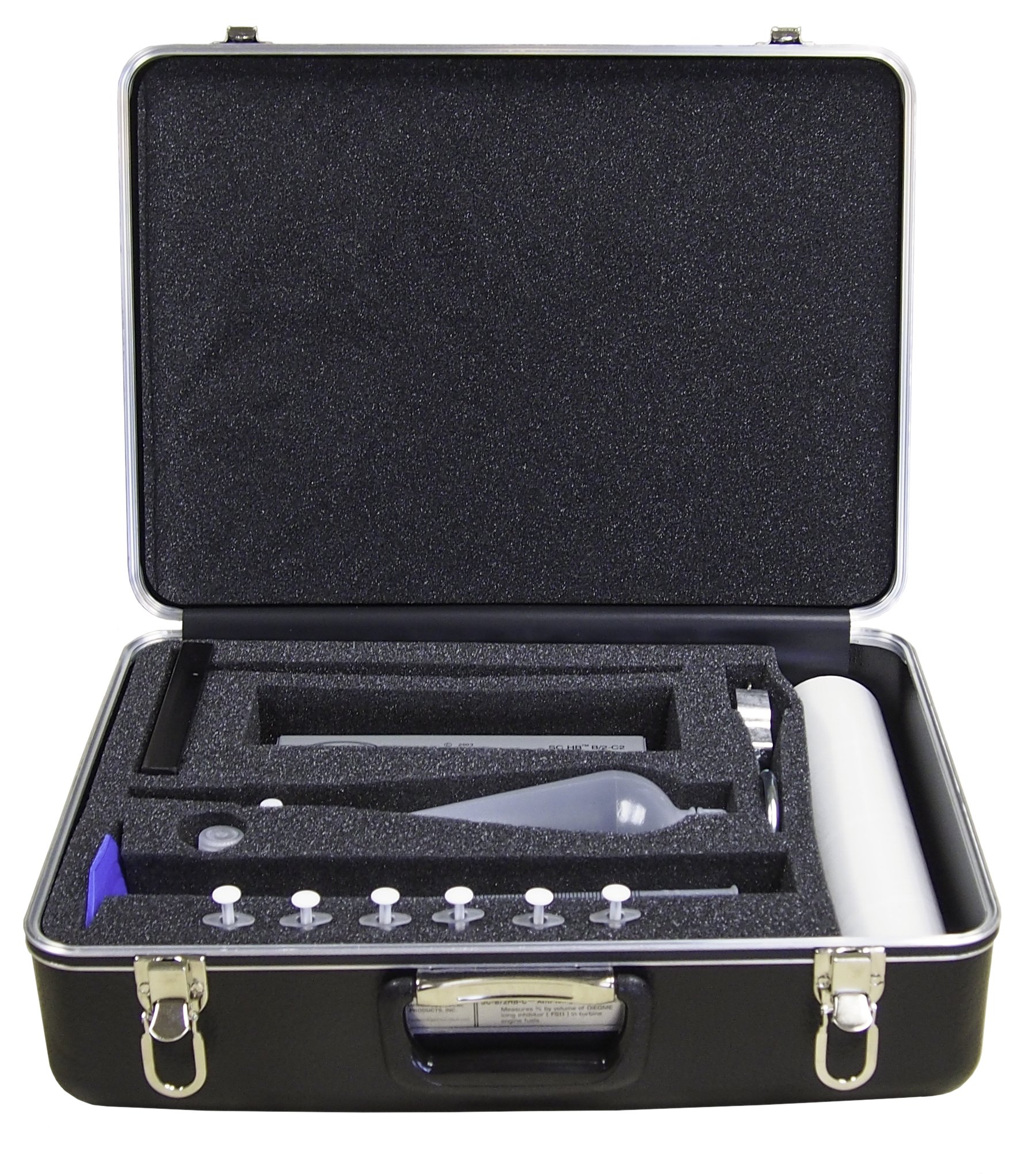

| SC-B/2HB-C-4 | Complete visual refractometer kit |

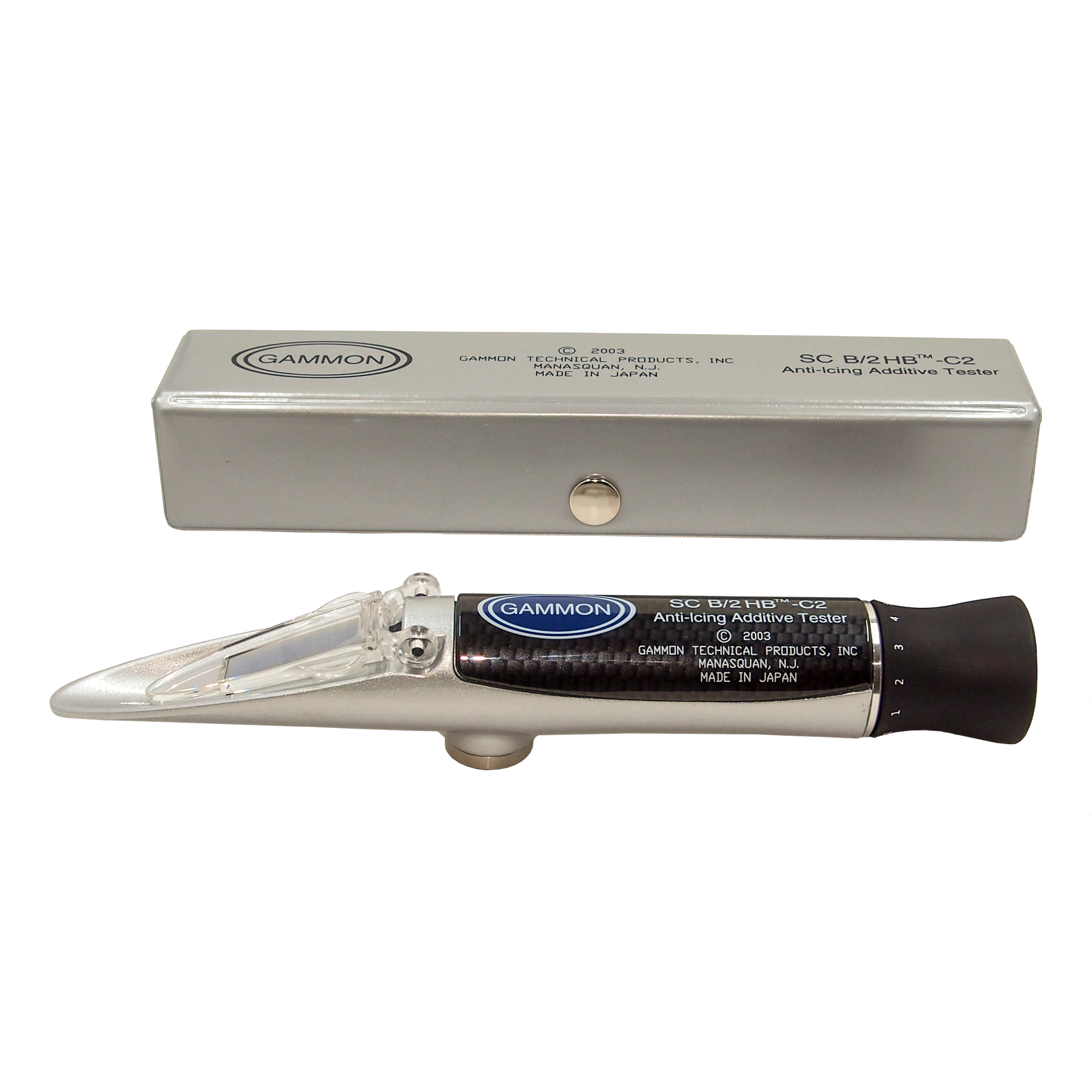

| SC-B/2HB-C2 | Visual refractometer only |
| Measurement Range: | DiEGME 0.0 to 0.250 % vol (automatic temperature compensation) |
| Minimum Scale: | DiEGME % vol |
| Accuracy: | DiEGME ±0.005 % vol (10 to 30°C) |
| International Protection Class: | IP65 Water Resistant (except eyepiece) |
| Size: | 3.2 × 3.4 × 20.3 cm |
| Weight: | 150 g |
| SC-B/2HB-C2: | 6650-01-229-5751 |
