Meter Monitor
The meter monitor makes closed circuit membrane testing possible and avoids the need for a measuring bucket and the need to dispose of fuel.
Description

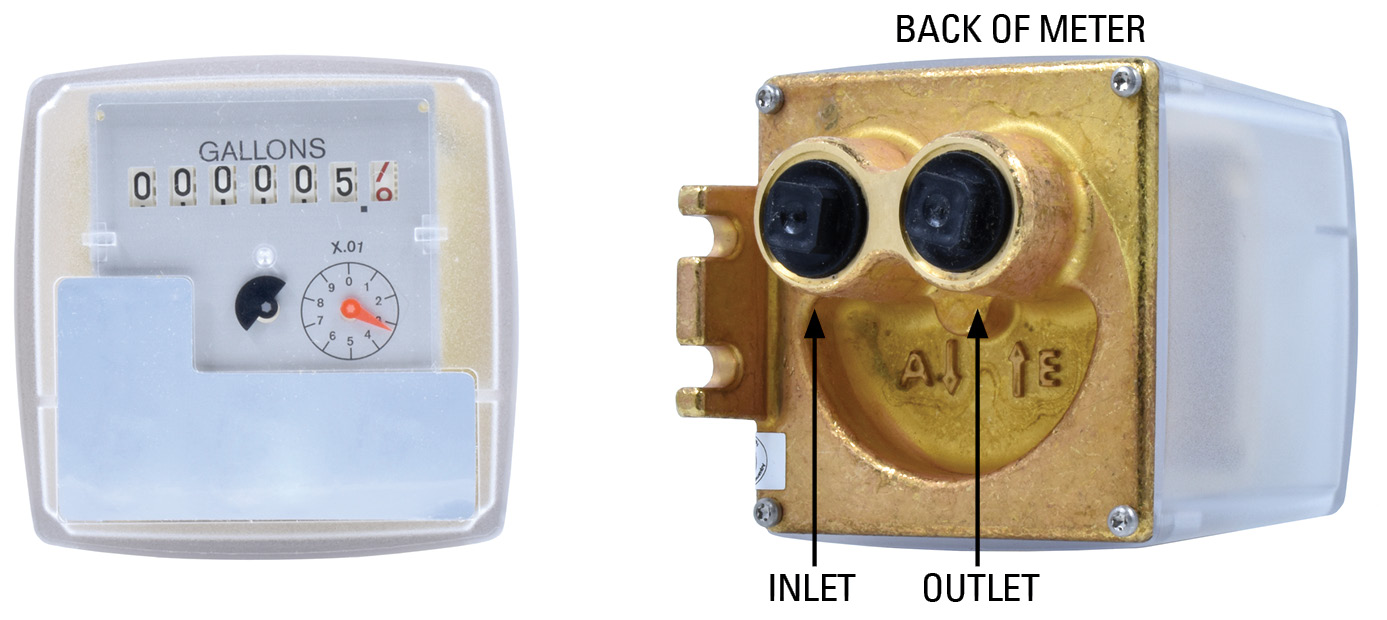

When performing filter membrane tests, the difficult part of the task is disposing of the test fuel. The Meter Monitor solves that problem completely. The flush and the test fuel are both returned to the fuel system and are never exposed to air, rain, or other contaminant sources. No buckets, funnels, or fuel spills. The Meter Monitor has two 1/8” NPT connections (connections are 1/4” NPT, inlet and outlet; we install bushings to 1/8” NPT).

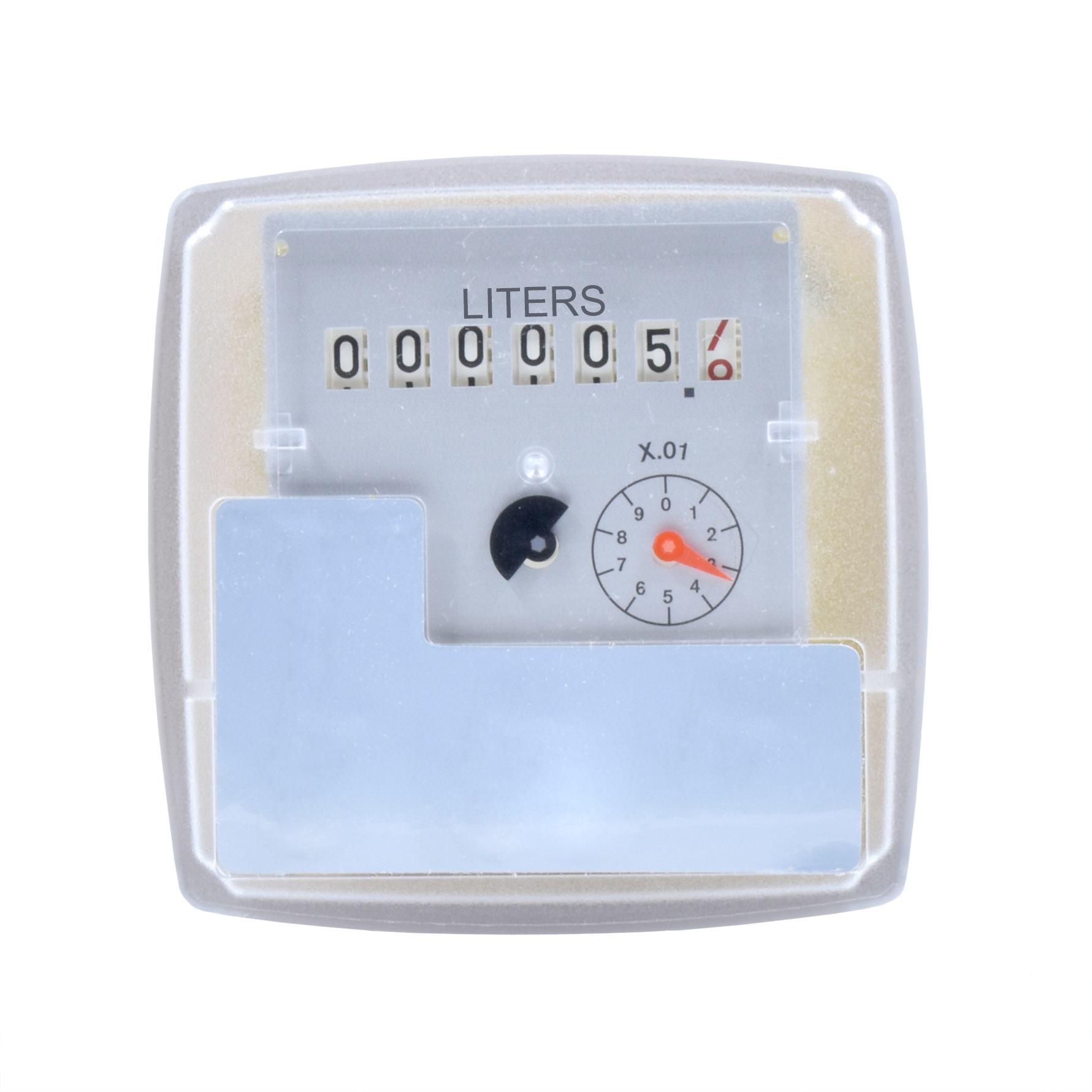

Available with gallon or liter calibration.
NOTE: The standard model is made for petroleum service (jet fuel). An optional version for metering anti-icing additive (diEGME) is also available with specially-designed seals.
| GTP-1850A-3: | 6680-01-717-0867 |
