Model 1152 Digital Conductivity Meter

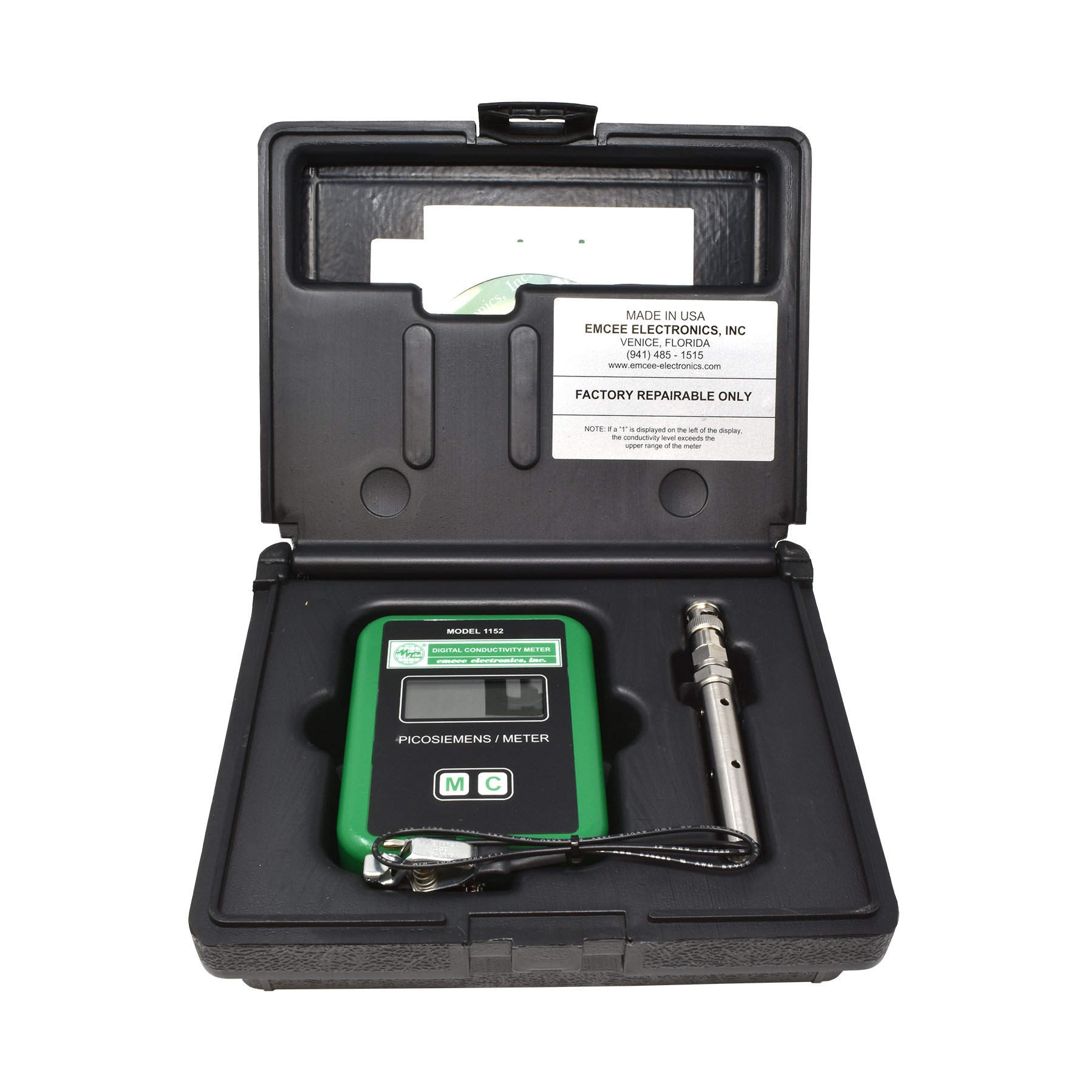

The EMCEE Model 1152 meter consists of an electronics assembly and a detachable stainless steel probe.
Description
The EMCEE Model 1152 meter consists of an electronics assembly and a detachable stainless steel probe. The probe, which is similar to a capacitor having concentric electrodes, is immersed into the fluid up to the set of holes closet to the electronics assembly. Depressing the “M” pushbutton causes a relatively small direct current to flow through the fluid between the electrodes.
The current is amplified in the electronics assembly and is displayed on the liquid crystal display in picosiemens per meter (pS/m).
Dimensions:
- Electronic Assy.: 4.1/2″ x 3.1/2″ x 1.1/2″
- Probe: 1/2″ dia. x 5″ long
- Carrying Case: 8.1/2″ x 7″ x 2.1/2″
- Weight: 2 lbs. net, 7 lbs. shipped
Details:
- Continuous standard electrical conductivity range from 1 to 2000 in increments of 1 picosiemen per meter (pS/m)
- Available in other standard and non-standard conductivity ranges up to 20M pS/m
- Large digital, liquid crystal display
- Reliable advanced integrated circuit design technology
- Self check calibration with field adjustment capability
- Automatic over range and low battery indication
- Capable of storage tank and tanker truck measurement with the use of a short cable or cable reel kit
- Powered by 3 readily available alkaline batteries
- Electronics housed in a rugged cast aluminum case coated with solvent resistant paint equipped with a detachable stainless steel probe
- Approved intrinsically safe design for use in hazardous environments by Underwriters Laboratories (UL) U.S, (UL) Canada and LCIE (Europe)
For more information, see the Emcee Electronics product page.
